OTS Aquacom STX-101® 4-channel Surface Station (5 Watts)

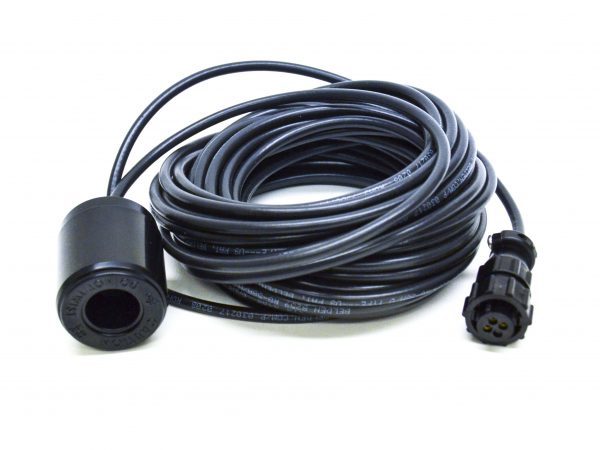

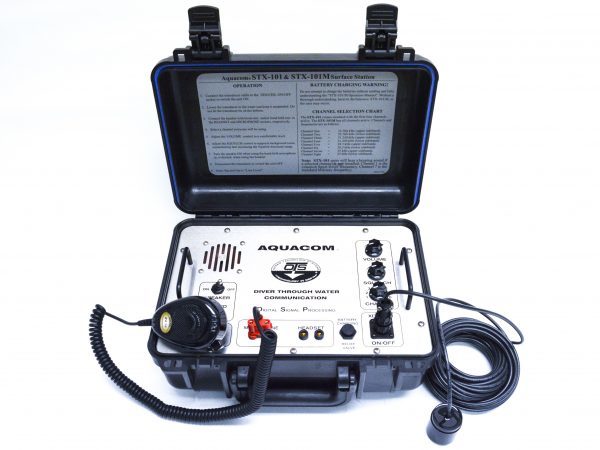

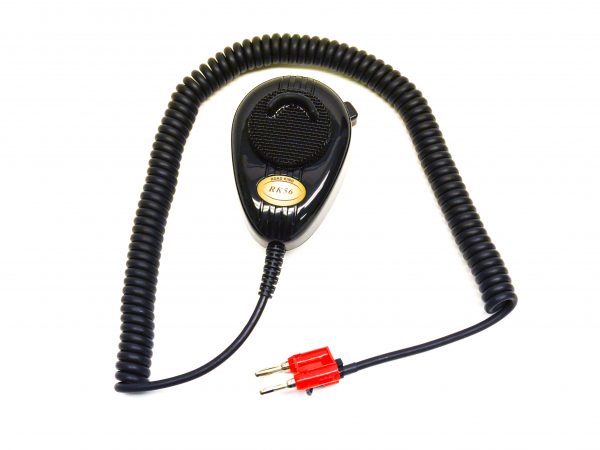

The Aquacom STX-101, 4-channel surface station. Includes hand held microphone & transducer/cable

Out of stock

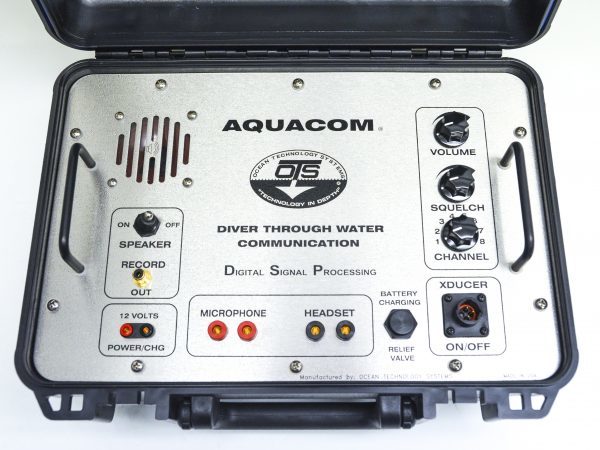

The Aquacom® STX-101 surface transceiver is a 5-watt, multichannel, single sideband underwater transceiver designed with the Professional Search & Rescue Teams in mind. The STX-101 offers four channels that match the SSB-2010. This system is tough, powerful and a must for any serious Search & Rescue Team. STX-101 is also very affordable!



Nominal Range 200m – 3000m*
Channels 1-4
Output Power (watts) 5
External Power Source 12 VDC @ min. 5 amps
Microphone/Speakers Hand held; dynamic, 200 ohm / heave duty front panel speaker with on/off control
Battery Type (2) 6-volt lantern battery (heavy duty w/springs) or 2 RB-6V gel-cell batteries
Battery Life (10% duty cycle) Alkaline: 20 hrs
gel-cell: 12 hrs
Dimensions (W x H x D) 14″ x 6.5″ x 10.60″
12 lbs




There are no reviews yet.

Be the first to review “OTS Aquacom STX-101® 4-channel Surface Station (5 Watts)”

Aquacom® STX-101 User Guide (rev. G)
